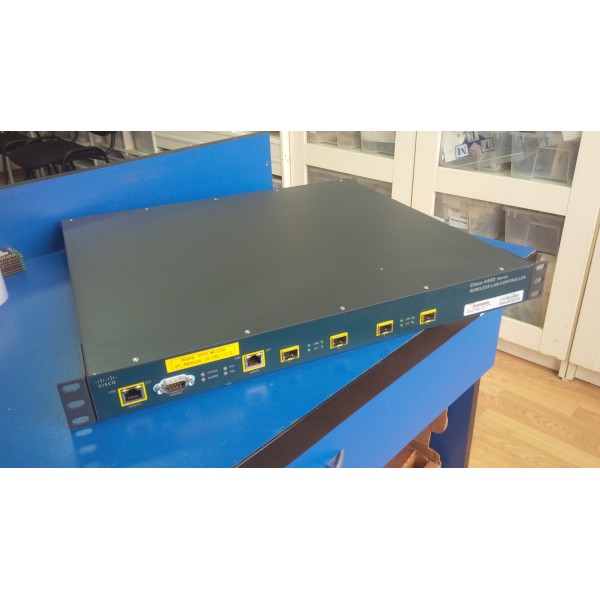

Wireless LAN Controller Cisco 4400 Series AIR-WLC4404-100-K9

Switch-uri

Wireless LAN Controller Cisco 4400 Series AIR-WLC4404-100-K9

Wireless


IEEE 802.11a, 802.11b, 802.11g, 802.11d, 802.11h, 802.11n


Wired/Switching/Routing


IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, IEEE 802.1Q VLAN tagging, and IEEE 802.1D Spanning Tree Protocol


Data Request For Comments (RFC)


RFC 768 UDP


RFC 791 IP


RFC 792 ICMP


RFC 793 TCP


RFC 826 ARP


RFC 1122 Requirements for Internet Hosts


RFC 1519 CIDR


RFC 1542 BOOTP


RFC 2131 DHCP


Security Standards


WPA


IEEE 802.11i (WPA2, RSN)


RFC 1321 MD5 Message-Digest Algorithm


RFC 1851 The ESP Triple DES Transform


RFC 2104 HMAC: Keyed Hashing for Message Authentication


RFC 2246 TLS Protocol Version 1.0


RFC 2401 Security Architecture for the Internet Protocol


RFC 2403 HMAC-MD5-96 within ESP and AH


RFC 2404 HMAC-SHA-1-96 within ESP and AH


RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV


RFC 2406 IPsec


RFC 2407 Interpretation for ISAKMP


RFC 2408 ISAKMP


RFC 2409 IKE


RFC 2451 ESP CBC-Mode Cipher Algorithms


RFC 3280 Internet X.509 PKI Certificate and CRL Profile


RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec


RFC 3686 Using AES Counter Mode with IPsec ESP


Encryption


WEP and TKIP-MIC: RC4 40, 104 and 128 bits (both static and shared keys)




SSL and TLS: RC4 128-bit and RSA 1024- and 2048-bit


AES: CCM, CCMP


IPSec: DES-CBC, 3DES, AES-CBC


Authentication, Authorization, and Accounting (AAA)


IEEE 802.1X


RFC 2548 Microsoft Vendor-Specific RADIUS Attributes


RFC 2716 PPP EAP-TLS


RFC 2865 RADIUS Authentication


RFC 2866 RADIUS Accounting


RFC 2867 RADIUS Tunnel Accounting


RFC 2869 RADIUS Extensions


RFC 3576 Dynamic Authorization Extensions to RADIUS


RFC 3579 RADIUS Support for EAP


RFC 3580 IEEE 802.1X RADIUS Guidelines


RFC 3748 Extensible Authentication Protocol


Web-based authentication


Management


SNMP v1, v2c, v3


RFC 854 Telnet


RFC 1155 Management Information for TCP/IP-Based Internets


RFC 1156 MIB


RFC 1157 SNMP


RFC 1213 SNMP MIB II


RFC 1350 TFTP


RFC 1643 Ethernet MIB


RFC 2030 SNTP


RFC 2616 HTTP


RFC 2665 Ethernet-Like Interface types MIB


RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual LAN Extensions


RFC 2819 RMON MIB


RFC 2863 Interfaces Group MIB


RFC 3164 Syslog


RFC 3414 User-Based Security Model (USM) for SNMPv3


RFC 3418 MIB for SNMP


RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs


Cisco private MIBs


Management Interfaces


Web-based: HTTP/HTTPS


Command-line interface: Telnet, SSH, serial port


Interfaces and Indicators


Uplink: 2 (4402) or 4 (4404) 1000Base-X transceiver slots


LED indicators: link, activity


Service Port: 10/100 Mbps Ethernet (RJ45)


LED indicators: link, activity

Utility Port: 10/100/1000 Mbps Ethernet (RJ45)


LED indicators: link, activity


Expansion Slots: 1 (4402) or 2 (4404)


Console Port: RS232 (DB-9 male, DTE interface)


Cablul de alimentare (220V) nu este inclus!
