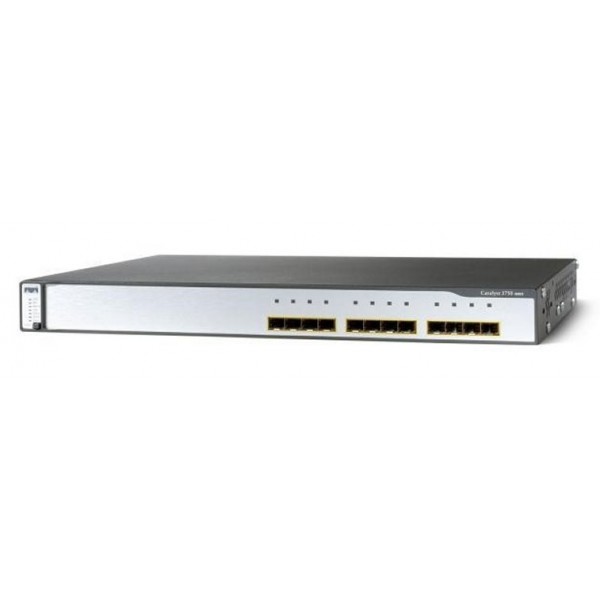

Switch Gigabit Cisco Catalyst WS-3750G-12S-S(E) V07 12ports Layer 3

Mufele stack lovite!

GENERAL

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 12 x Gigabit SFP

Jumbo Frame Support Yes

Max Units In A Stack 9

Authentication Method Kerberos, RADIUS, Secure Shell (SSH), TACACS+

RAM 128 MB

Flash Memory 16 MB flash

MAC Address Table Size 12K entries

Max Units In A Stack 9

Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Status Indicators Port transmission speed, port duplex mode, bandwidth utilization %, system, RPS (Redundant Power Supply), link/activity

Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng

Jumbo Frame Support Yes

ManufacturerCisco

POWER DEVICE

Nominal Voltage AC 120/230 V

Frequency Required 50/60 Hz

Power Consumption Operational 120 Watt

Type internal power supply

CAMERA

Installed Size 16 MB

NETWORKING

MAC Address Table Size 12K entries

Subcategory network hubs and switches

Subtype Gigabit Ethernet

Form Factor rack-mountable

Type Switch

Stackable stackable

Connectivity Technology wired

Max Units In A Stack 9

Advanced Switching Layer 3

Features ARP support, Access Control List (ACL) support, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Cisco EnergyWise technology, VLAN support, auto-negotiation, auto-sensing per device, auto-uplink (auto MDI/MDI-X), flow control, full duplex capability, layer 3 switching, stackable, traffic shaping, Cisco StackWise Technology, DHCP support, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IP-routing, Jumbo Frames support, Link Aggregation Control Protocol (LACP)

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae

Jumbo Frame Support Yes

Ports Qty 12

Manageable Yes

Routing Protocol HSRP, RIP-1, RIP-2, RIPng, static IP routing

Switching Protocol Ethernet

Remote Management Protocol CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet

Communication Mode full-duplex, half-duplex

POWER

Features Redundant Power System (RPS) connector

Features Redundant Power System (RPS) connector

MISCELLANEOUS

MTBF 215000 sec

Height (Rack Units) 1 m

INTERFACE PROVIDED

Gender female

Interface console

Qty 1, 12

Connector Type RJ-45, SFP (mini-GBIC)

Comments management
