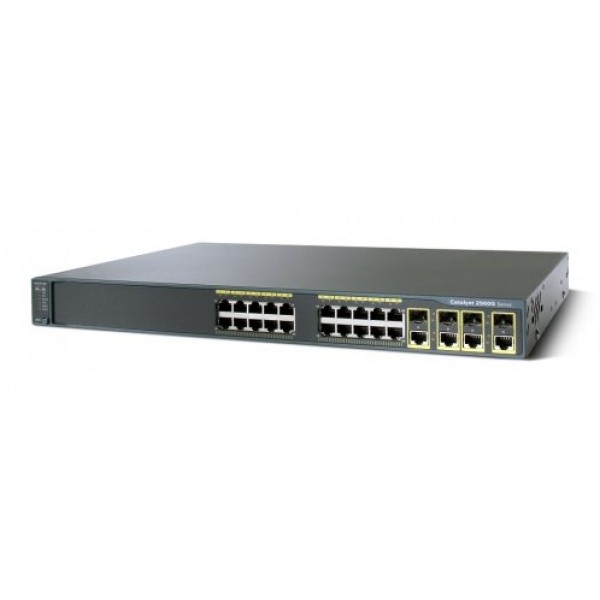

Switch Full Gigabit CISCO WS-C2960G-24TC-L CATALYST 2960 24-PORT 10/100/1000 4 T/SFP LAN BAS
| Brand | Cisco |
| Model | 2960-24TC |
| MPN | WSC296024TCL |
| UPC | 0882658035005, 882658602177 |
| |
| Key Features |
| Form Factor | Rack-Mountable |
| Ports Qty | 24 |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet (100-Mbit/s) |
| Compatibility | PC |
| |
| Features |
| Other Features | Layer 2 switching, auto-sensing per device, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
| Status Indicators | Link activity, port transmission speed, port duplex mode, power, link OK, system |
| |
| Networking |
| Networking Type | Switch |
| Connectivity Technology | Wired |
| Switching Protocol | Ethernet |
| Remote Management Protocol | HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TFTP, Telnet |
| MAC Address Table Size | 8K entries |
| |
| Connectors |
| Interfaces | 2 x network host - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female, 24 x network node - Ethernet 10Base-T/100Base-TX - RJ-45 female |
| |
| Power |
| Power Consumption Operational | 27 Watt |
| Power Source | AC 120/230 V ( 50/60 Hz ) |
| Power Supply | Power supply - internal |
