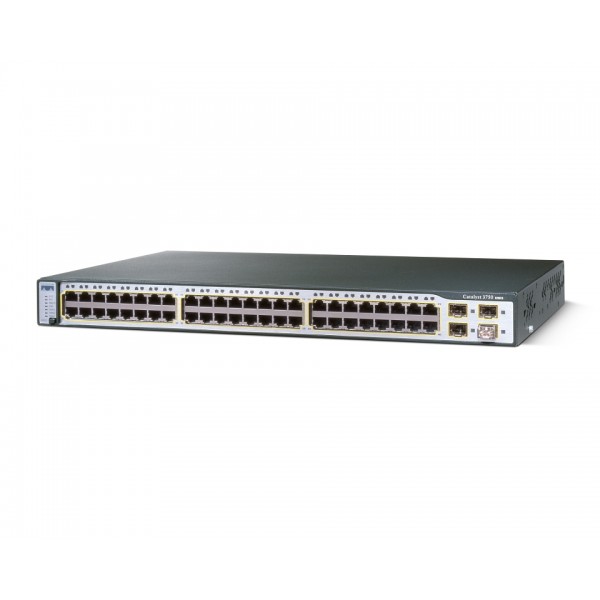

Switch Cisco WS-C3750-48TS-S V07 48Ports

Switch Cisco WS-C3750-48TS-S V07 48Ports

Are mufele de STACK indoite dar switchul functioneaza!

GENERAL

Device Type Switch - 48 ports - managed - stackable

Subtype Fast Ethernet

Ports 48 x 10/100 + 4 x SFP

Authentication Method RADIUS, Secure Shell (SSH), TACACS+

Flash Memory 16 MB flash

MAC Address Table Size 12K entries

Authentication Method Secure Shell (SSH), RADIUS, TACACS+

Status Indicators Port status, port transmission speed, port duplex mode, power, link/activity

Routing Protocol Static IP routing

ManufacturerCisco

POWER DEVICE

Nominal Voltage AC 120/230 V

Frequency Required 50/60 Hz

Power Consumption Operational 42 Watt

Type internal power supply

CAMERA

Installed Size 16 MB

NETWORKING

Cabling Type Ethernet 100Base-TX, Ethernet 10Base-T

MAC Address Table Size 12K entries

Subcategory network hubs and switches

Subtype Fast Ethernet

Form Factor rack-mountable

Type Switch

Stackable stackable

Connectivity Technology wired

Features ARP support, DHCP support, routing, stackable, trunking, IGMP snooping, VLAN support, auto-negotiation, auto-sensing per device, flow control, full duplex capability, load balancing, manageable

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u

Ports Qty 48

Manageable Yes

Routing Protocol static IP routing

MISCELLANEOUS

Rack Mounting Kit optional

MTBF 217824 sec

Height (Rack Units) 1 m

Refurbished refurbished

INTERFACE PROVIDED

Interface Ethernet 10Base-T/100Base-TX, console

Qty 1, 2, 24, 4

Connector Type RJ-45, SFP (mini-GBIC)

Comments management

ENVIRONMENTAL PARAMETERS

Min Operating Temperature 32 °F

Max Operating Temperature 113 °F

Humidity Range Operating 10 - 85%

HEADER

Brand Cisco

Product Line Cisco Catalyst

Model 3750-48TS-S

Packaged Quantity 1

Compatibility PC

CABLE DETAILS

Type serial cable

Included Qty 1

Form Factor external

DIMENSIONS & WEIGHT

Width 17.5 in

Depth 11.9 in

Height 1.7 in

Weight 9.04 lbs

PORTS

Type 10/100

Qty 48

PORTS (2ND)

Type SFP (mini-GBIC)

Qty 4
