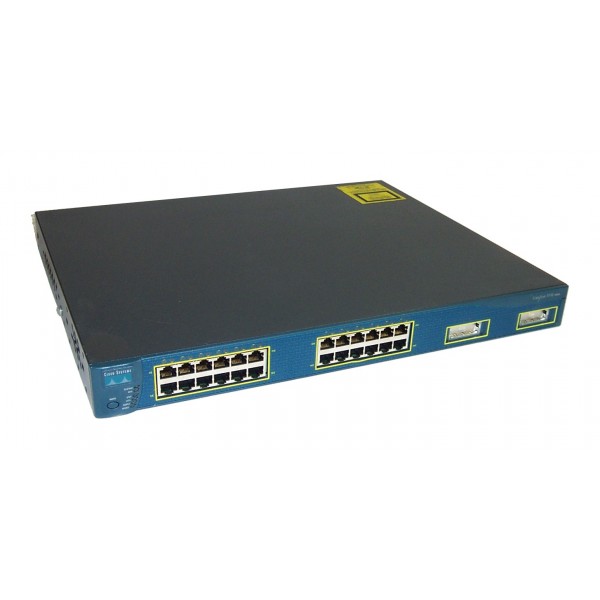

Switch Cisco WS-C3550-24-SMI 24 x 10/100 + 2 x port GBIC

Switch Cisco WS-C3550-24-SMI 24 x 10/100 + 2 x port GBIC

GBIC nu sunt incluse!!!

GENERAL

Subtype Fast Ethernet

Ports 24 x 100Base-FX + 2 x GBIC

RAM 64 MB

Flash Memory 16 MB flash

MAC Address Table Size 8K entries

Status Indicators Port status, port duplex mode, bandwidth utilization %, power, link/activity

ManufacturerCisco

EXPANSION / CONNECTIVITY

Interfaces 24 x 100Base-FX - MT-RJ multi-mode

1 x RJ-45 management

1 x 9 pin D-Sub (DB-9) management

2 x GBIC

Installed Modules Qty (Max) 0 (installed) / 2 (max)

POWER DEVICE

Voltage Required AC 110/220 V

Nominal Voltage AC 120/230 V

Frequency Required 50/60 Hz

Power Consumption Operational 125 Watt

Type internal power supply

CAMERA

Installed Size 16 MB

NETWORKING

Cabling Type Ethernet 100Base-FX

MAC Address Table Size 8K entries

Subcategory network hubs and switches

Subtype Fast Ethernet

Form Factor desktop

Type switch

Connectivity Technology wired

Advanced Switching Layer 3

Features DHCP support, IP-routing, VLAN support, full duplex capability, layer 3 switching, manageable, uplink

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Ports Qty 24

Manageable Yes

Switching Protocol Ethernet

Remote Management Protocol HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2, Telnet

Communication Mode full-duplex, half-duplex

POWER

Compliant Standards CSA, UL, UL 1950, cUL

MISCELLANEOUS

Height (Rack Units) 1 m

Refurbished refurbished

INTERFACE PROVIDED

Interface Ethernet 100Base-FX

Qty 1, 2, 24

Connector Type 9 pin D-Sub (DB-9), GBIC, MT-RJ multi-mode, RJ-45

Comments management

ENVIRONMENTAL PARAMETERS

Max Altitude Operating 9840 ft

Min Operating Temperature 32 °F

Max Operating Temperature 113 °F

Humidity Range Operating 10 - 85%

HEADER

Brand Cisco

Product Line Cisco Catalyst

Model 3550-24 SMI

Packaged Quantity 1

Compatibility PC

CABLE DETAILS

Type serial adapter, serial cable

Included Qty 1

Form Factor external

DIMENSIONS & WEIGHT

Width 17.5 in

Depth 16.3 in

Height 1.8 in

Weight 12.13 lbs

EXPANSION BAYS

Type none

SOFTWARE

Type Standard Multilayer Software Image (SMI)

PORTS

Type 100Base-FX Qty 24

PORTS (2ND)

Type GBIC Qty 2
